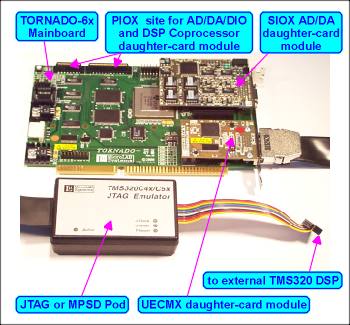

TORNADO-6x
are ultra high-performance fixed- and floating-point DSP systems and universal emulators for TI TMS320 DSP for ISA-bus PC and standalone applications.
key features:
compatible ultra-high performance DSPs:
1000MFLOPS 32-bit floating-point TMS320C67xx DSP
TORNADO
compatible

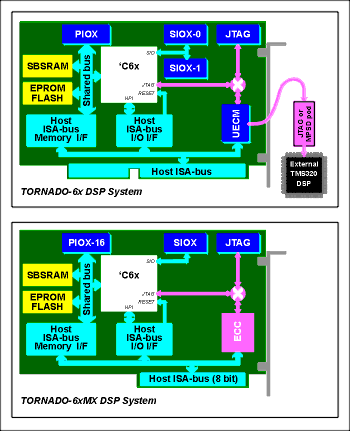

system architecture
and
modular construction
up to 1Mx32
SBSRAM
up to 1Mx8 of plug-in
EPROM/FLASH
for stand-alone operation
Shared Bus
(SB) architecture
PIOX/PIOX-16
and
SIOX
sites for
AD/DA/DIO
daughter-card modules and application specific I/O coprocessors
direct access from
host ISA-bus I/F
to SBSRAM, PIOX/PIOX-16 and DSP on-chip HPI port
DSP boots from None/FLASH/HPI
multiprocessor DSP expansion
watch-dog timer
stand-alone operation
UECMX
on-board JTAG plug-in emulator option running under TI Code Composer Debugger tools
converts to the
emulator for any external TMS320 DSP
via optional external JTAG or MPSD pod
build-in device serial codes
compact size
supported by
TORNADO Software Development Kit (TSDK)
and
industry-standard DSP software tools
applications:
multichannel vocoders and speech processing
pooled fax/modems
xDSL modems
multichannel telephony
multichannel audio
image processing and tomography
acoustics and radar
industrial and instrumentation
education and evaluation
universal emulators for TMS320 DSP
TORNADO-6x DSP Systems Summary
p/n
DSP
max SBRAM
max
EPROM/
FLASH
I/O Expansion
Emulation options
Host PC bus
Stand-
alone
operation
TORNADO-67
'C6701
1000MFLOPS
1Mx32
1Mx8
(plug-in)
PIOX
SIOX
(2)
UECMX
+
pod
ISA
