TORNADO-54x are high-performance ISA-bus PC plug-in fixed-point DSP systems and universal emulators for TI TMS320 DSP.

key features:

up to 160MIPS 16-bit fixed-point  TMS320C5416/C5402 DSPs
TORNADO compatible system architecture and modular construction
multi-page SRAM (separate Program and Data areas)
Shared Bus (SB) architecture
PIOX-16 and SIOX sites for AD/DA/DIO daughter-card modules and application specific I/O coprocessors
direct access from host ISA-bus I/F to SRAM, PIOX-16 and DSP on-chip HPI port
multiprocessor DSP expansion
UECMX on-board JTAG plug-in emulator option running under TI Code Composer Debugger tools
converts to the emulator for any external TMS320 DSP via optional external JTAG or MPSD pod
build-in device serial codes
compact size
supported by TORNADO Software Development Kit (TSDK) and industry-standard DSP software tools

applications:

vocoders/fax/modem
wireless communication
speech procesing
audio
multimedia
industrial
medical
instrumentation
education
universal emulators for TMS320 DSP

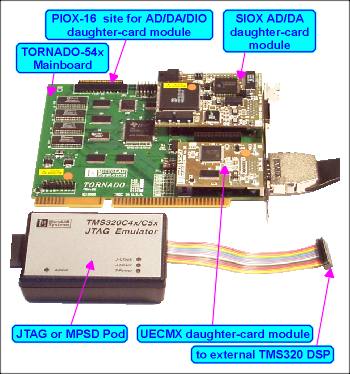

TORNADO-54x Modular Construction

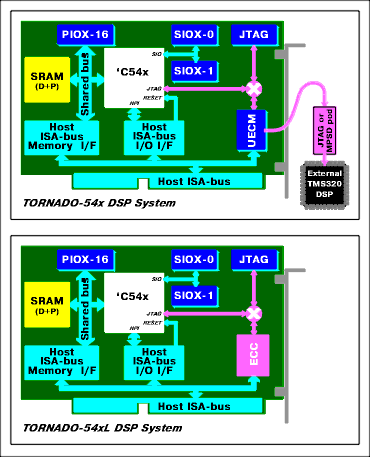

TORNADO-54x DSP Systems Architecture

TORNADO-54x DSP Systems Summary

p/n DSP SRAM I/O Expansion Emulation options Host
PC bus
TORNADO-5416
TORNADO-5402
'VC5416
160MIPS

'VC5402
100MIPS
2x64Kx16 (P-MEM)

4x32Kx16 (D-MEM)
PIOX-16

SIOX(2)
UECMX
+ pod
ISA pdfsmall.gif (153 bytes)

Utility software and on-line manuals:

TORNADO-54x Software Utilities and On-line Documentation
TORNADO Software Development Kit (TSDK) for host Windows Applications

Other documentation:

TORNADO PC plug-in DSP Systems Summary Datasheet (Rus) (Eng)
Software Development tools for TORNADO/MIRAGE (Rus)
Application software tools for TORNADO (Rus)
